Enabling JMS Server logs in Weblogic Server

Enabling JMS Server logs in Weblogic Server

Default the JMS Server log available in below location

     Enabling  log message in Topic level. If "All Body" option choose then complete message will be logged in JMS server logs.

JMS Server Log file location

Sample JMS Server logs will body content

oracle/pii_security_policy - OWSM Policy

oracle/pii_security_policy - OWSM Policy

Use of this policy to  encrypt user data in server log files ( Example SSN number or Credit Card Number ). So additional  data level security

          Project structure :

           Composite Structure  :

         Adding Policies in proxy service - PII

Edit PII  property and add Xpath expression to the filed you want to encrypt

             Output message Optional

CSF Key is required to encrypt the user data. Configure in Key store ( EM Console)

Pipeline structure

                          Body replaced to view in  console output

  EM Console adding security --> Credentials

Create map as "oracle.wsm.security" and create key as "pii-csf-key"

  Provide username and password

Console Input and Output data

( Input "Krishna Moorthi" and in Output encrypted as below )

oracle/log_policy - Management - OWSM policy

oracle/log_policy - Management - OWSM policy

Main purpose of the policy to view Incoming and Outgoing  SOAP envelope of Proxy or Business service including soap header and body

Input and Output message

   log_policy available in "owsm"  folder path

  This log file contain only incoming and outgoing message ( No other message will be printed )

Secure JMS module with authentication ( Username and password )

Secure JMS module with authentication ( Username and password )

In real world providing security  is important for JMS module . So the user have permission only able to Consume or produce message to Topic/ Queue

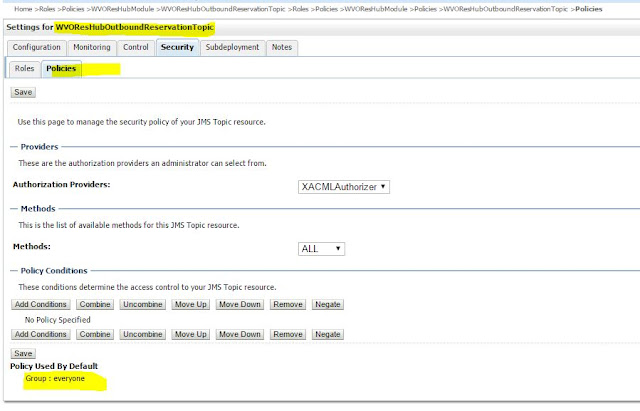

My JMS Module Name :  WVOResHubModule I want to implement security for Topic . As of now Group policy to everyone can access Topic message. In order to provide access for certain users add security  shown below

JMS Module --> Security -->Policies

Click Add Conditions --> Predicate List --> User

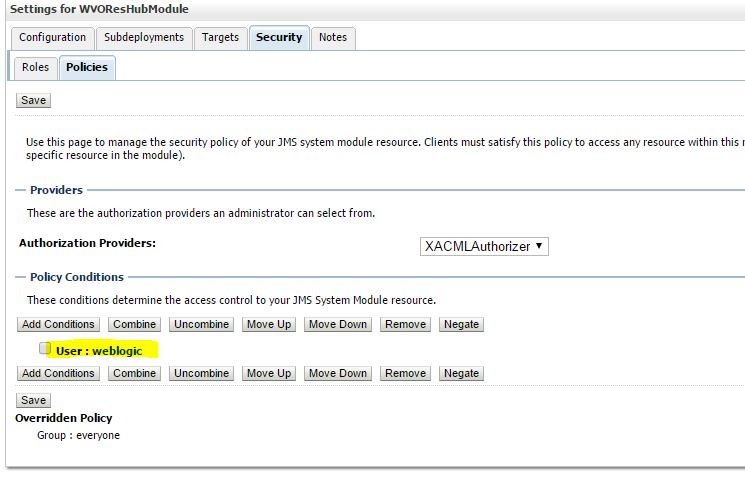

Add usernames  : I added "weblogic"  as username

 Click add button

Now weblogic added in JMS module level . so all the Queues and topics below to this JMS module secured with username and password auth

Now the policy used by changed from "everyone" to "weblogic". So weblogic user have only permission to read and write message to Topic/ Queue
